Grid8by5

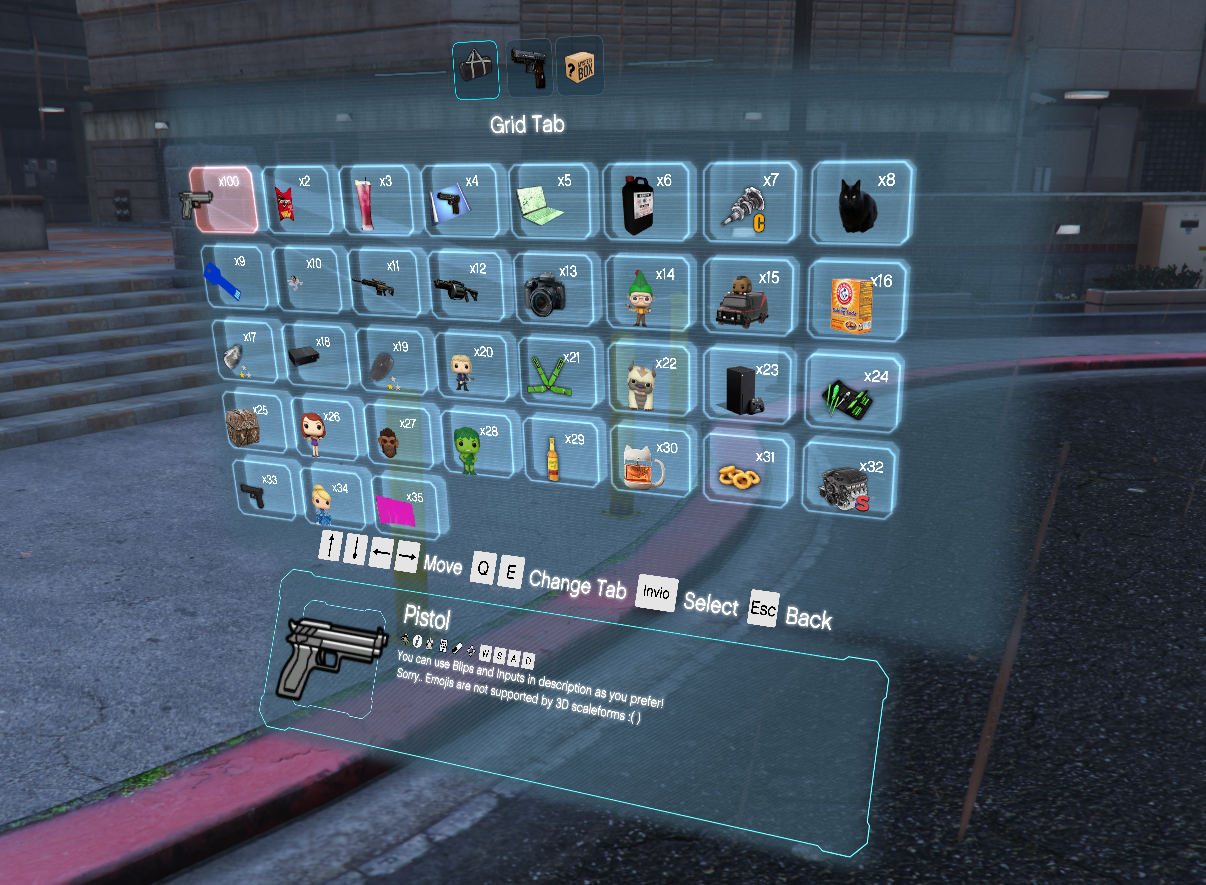

Grid8by5 is a tab that inherits from BaseTab and displays a center grid with 8 columns by 5 rows.
It is designed to handle items in a structured grid, shows a description panel at the bottom, supports contextual menus (ContextColumn) for each item, and provides a callback when the selected index changes.

Properties

Property	Type	Description
`CenterPanel`	`Grid8by5Column`	The main center grid containing all items.
`LeftPanel`	`BasePanel children`	The panel on the left side of the grid, optional and can be hidden or changed on need
`RightPanel`	`BasePanel children`	The panel on the right side of the grid, optional and can be hidden or changed on need
`BottomPanel`	`DescriptionPanel`	Panel used exclusively to display the description of the currently selected item. Cannot be replaced with other panels.
`_identifier`	`string`	Internal tab identifier.
`textureDict`	`string`	Texture dictionary used for the tab.
`textureFileName`	`string`	Texture file name used for the tab.
`OnIndexChange`	`fun(item:GridItem, index:integer)`	Callback triggered whenever the selection in the center grid changes.

Methods

Method	Parameters	Returns	Description
`New(name, txd, txn)`	`name:string`, `txd:string`, `txn:string`	`Grid8by5`	Creates a new `Grid8by5` tab with a given name and textures.
`AddItem(item)`	`item:GridItem`	-	Adds an item to the center grid.
`RemoveItem(index)`	`index:number`	-	Removes the item at the specified index from the center grid and updates the bottom description panel.
`CurrentSelection(index?)`	`index:number\|nil`	`GridItem`	Gets or sets the currently selected item in the center grid.
`Populate()`	-	-	Populates all panels and the center grid with their items.
`ShowColumns()`	-	-	Displays all panels and the center grid.
`GoUp()`	-	-	Navigates up in the center grid and updates the bottom panel.
`GoDown()`	-	-	Navigates down in the center grid and updates the bottom panel.
`GoLeft()`	-	-	Navigates left in the center grid and updates the bottom panel.
`GoRight()`	-	-	Navigates right in the center grid and updates the bottom panel.
`Select()`	-	-	Opens the context menu (`ContextColumn`) for the currently selected item.
`HandleInput()`	-	-	Handles user input for navigation, selection, and context menu interaction.

Notes

The BottomPanel is exclusively a description panel and cannot be replaced by other panels. Its only purpose is to show details for the currently selected grid item.
ContextColumn is automatically populated when Select() is called and appears above the selected item in the center grid.
Navigation methods (GoUp, GoDown, GoLeft, GoRight) automatically update the BottomPanel and trigger the OnIndexChange callback.

Example:

-- create the tab
local tab8by5 = Grid8by5.New("Grid Tab", "testtxd", "bag")
-- add the tab to the inventory
inventory:AddTab(tab8by5)
-- create the Left panel as a LorePanel
local gridLorePanel = LorePanel.New("Lore Panel")
tab8by5:SetupLeftPanel(gridLorePanel)
-- create right panel without caching it in a parameter... unusual but allowed
tab8by5:SetupRightPanel(DetailsPanel.New("Item Details"))

-- set the istructional buttons to the panel
tab8by5.IBPanel:AddItem({Label="Move", Control="~INPUTGROUP_FRONTEND_DPAD_ALL~"})
tab8by5.IBPanel:AddItem({Label="Change Tab", Control="~INPUTGROUP_FRONTEND_BUMPERS~"})
tab8by5.IBPanel:AddItem({Label="Select", Control="~INPUT_FRONTEND_ACCEPT~"})
tab8by5.IBPanel:AddItem({Label="Back", Control="~INPUT_FRONTEND_CANCEL~"})

-- Add the context options to the context menu
-- it can be unique for all the tab items.
local gridUseItem = ContextItem.New("Use")
local gridThrowItem = ContextItem.New("Throw", 1, 3, 1)
tab8by5.Context:AddItem(gridUseItem)
tab8by5.Context:AddItem(gridThrowItem)

-- or it can be reset and re-created per item using OnIndexChange event called everytime you move the selection around
tab8by5.OnIndexChange = function(item, index)
    -- clear the items in the context menu
    tab8by5.Context:ClearItems()
    local gridUseItem = ContextItem.New("Use")
    local gridThrowItem = ContextItem.New("Throw", 1, item:Amount(), 1) -- if amount is a number.. if not you handle it as a string and convert it into a number
    -- add the items back into the context menu.
    tab8by5.Context:AddItem(gridUseItem)
    tab8by5.Context:AddItem(gridThrowItem)
end


local item = GridItem.New("Pistol", "A simple Pistol to start your criminal career", 100, `weapon_pistol`) -- no texture since we gave a weapon hash
tab8by5:AddItem(item)
-- we call the internal Panels to change their background colors using SColor class
tab8by5.CenterPanel:SetBGColor(SColor.FromRandomValues())
tab8by5.LeftPanel:SetBGColor(SColor.FromRandomValues())
tab8by5.RightPanel:SetBGColor(SColor.FromRandomValues())
