StatsPanel
The StatsPanel is used to display a list of character or object statistics. It can contain up to 15 stat entries if the turbine is inactive, or 10 entries if the turbine display is active.

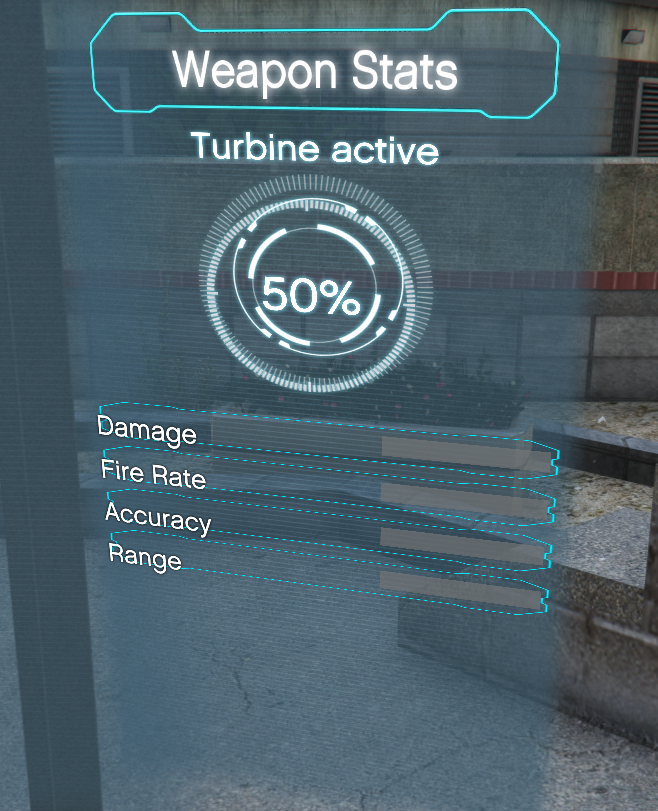

Additionally, the panel can feature a Turbine Display, which is a circular animated gauge that shows either a short text or a percentage in its center. The turbine has three animation states:
Idle: the turbine is spinning slowly, representing a normal stateRandom: the turbine animation fluctuates randomlyStressed: the turbine spins rapidly to indicate stress or overload
The turbine is visually configurable with a title, central label, and animation type, allowing dynamic feedback on stats.
Properties
| Property | Type | Description |
|---|---|---|
Title | string | Panel title |
nextId | number | Counter for stat entries |
turbineVisible | boolean | Whether the turbine display is active |
turbineTitle | string | Title for the turbine display |
turbineCentralLabel | string | Central label or value of the turbine |
turbineAnimation | number | Animation state of the turbine (0 = idle, 1 = random, 2 = stressed) |
Methods
| Method | Description |
|---|---|
AddStat(label:string, percentage:number):number | Adds a new stat entry to the panel and returns its index |
UpdateStat(id:number, label:string, percentage:number):StatsPanel | Updates an existing stat entry by ID |
SetTurbine(visible:boolean, title:string, centralLabel:string, animation:number) | Configures the turbine display with visibility, title, central label, and animation state |
Populate() | Populates the panel in the scaleform, including the turbine if active |
ShowPanel() | Displays the panel in the scaleform |
Clear() | Clears all stats and resets the panel |
