CharPanel
The CharPanel is a panel derived from BasePanel.

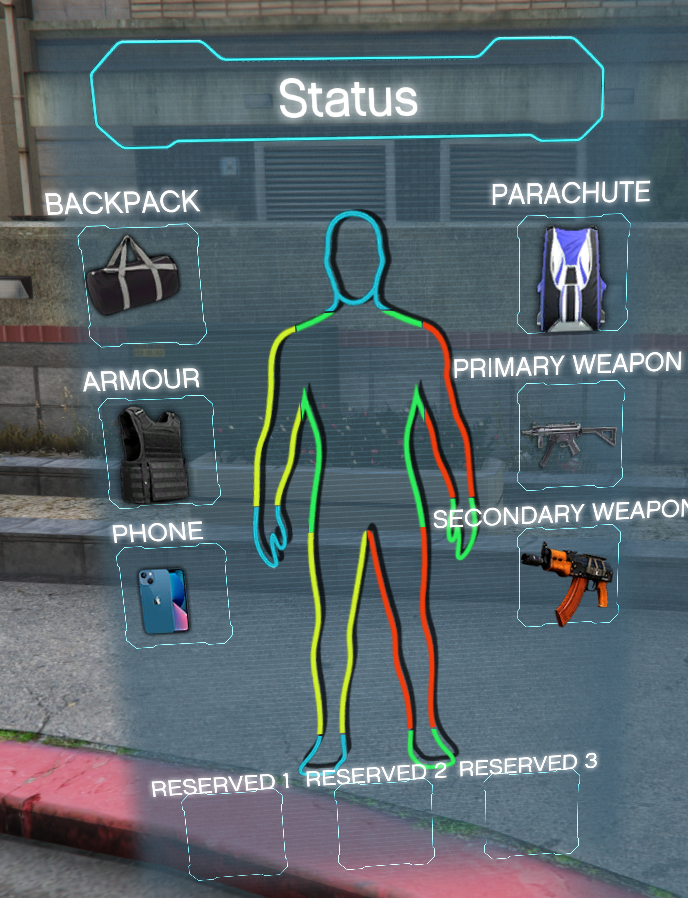

It displays the silhouette of a male or female character with body-part health indicators and up to 9 equipment slots.
This panel is mainly used to:
- Show the status of each body part (head, torso, arms, hands, legs, feet).
- Display the character’s equipped items (weapons, armor, utilities, etc.).
- Provide a clear overview of the player’s current loadout.
Example Use Case
-- Creating and populating a character loadout
local loadoutChar = CharPanel.New("Loadout")
loadoutChar:SetSlot(1, "BACKPACK", "testtxd", "bag")
loadoutChar:SetSlot(2, "ARMOUR", "testtxd", "armor")
loadoutChar:SetSlot(3, "PHONE", "testtxd", "blue_phone")
loadoutChar:SetSlot(4, "RESERVED 1", "", "")
loadoutChar:SetSlot(5, "RESERVED 2", "", "")
loadoutChar:SetSlot(6, "RESERVED 3", "", "")
loadoutChar:SetSlot(7, "SECONDARY WEAPON", "testtxd", "weapon_compactrifle")
loadoutChar:SetSlot(8, "PRIMARY WEAPON", "testtxd", "mp5")
loadoutChar:SetSlot(9, "PARACHUTE", "testtxd", "parachute_blue")
Properties
| Name | Type | Description |
|---|---|---|
Gender | number | Character gender (0 = male, 1 = female). |
Title | string | Panel title. |
Head | number | Head body-part slot. |
Torso | number | Torso body-part slot. |
Arm_l | number | Left arm body-part slot. |
Arm_r | number | Right arm body-part slot. |
Hand_l | number | Left hand body-part slot. |
Hand_r | number | Right hand body-part slot. |
Leg_l | number | Left leg body-part slot. |
Leg_r | number | Right leg body-part slot. |
Foot_l | number | Left foot body-part slot. |
Foot_r | number | Right foot body-part slot. |
Parent | BaseTab | Reference to the parent tab. |
IsVisible | boolean | Indicates whether the panel is currently visible. |
Methods
| Name | Parameters | Returns | Description | |
|---|---|---|---|---|
SetSlot | (id: number, label: string, txd: string, txn: string, weaponHash: number) | CharPanel | Sets an equipment slot with label, texture, and optional weapon hash (same as GridItem logic). | |
SetBodyParts | (head, torso, arm_l, arm_r, hand_l, hand_r, leg_l, leg_r, foot_l, foot_r: number) | void | Defines the state of each body part. Check BodyPartState for the values | |
SetGender | (gender: number) | CharPanel | Sets the character’s gender (0 = Male, 1 = Female). | |
SetVisible | state?: boolean | BasePanel | Shows or hides the panel; returns the panel instance. | |
Clear() | — | — | Clears all stats and resets the panel | |
Populate() | — | — | Initializes the panel in the scaleform. | |
ShowPanel() | — | — | Displays the panel and sets background color. |
Enum used for SetBodyParts function
BodyPartState represents the health or condition of a character’s body part.
| Name | Value | Description |
|---|---|---|
| DISABLED | -1 | Body part is not active |
| HEALTHY | 0 | Body part is healthy (green) |
| DAMAGED | 1 | Body part is damaged (yellow) |
| DANGER | 2 | Body part is in critical state (red) |
Example
-- using numbers
loadoutChar:SetBodyParts(-1, 0, 1, 2, -1, 0, 1, 2, -1, 0)
loadoutChar:SetBodyParts(BodyPartState.DISABLED, BodyPartState.HEALTHY, BodyPartState.DAMAGED, BodyPartState.DANGER, BodyPartState.DISABLED, BodyPartState. HEALTHY, BodyPartState.DAMAGED, BodyPartState.DANGER, BodyPartState.DISABLED, BodyPartState.HEALTHY)
This example shows how to update the LorePanel with a long vertical text description for an object or item, you can change its description using OnIndexChange to allow each item to show.
