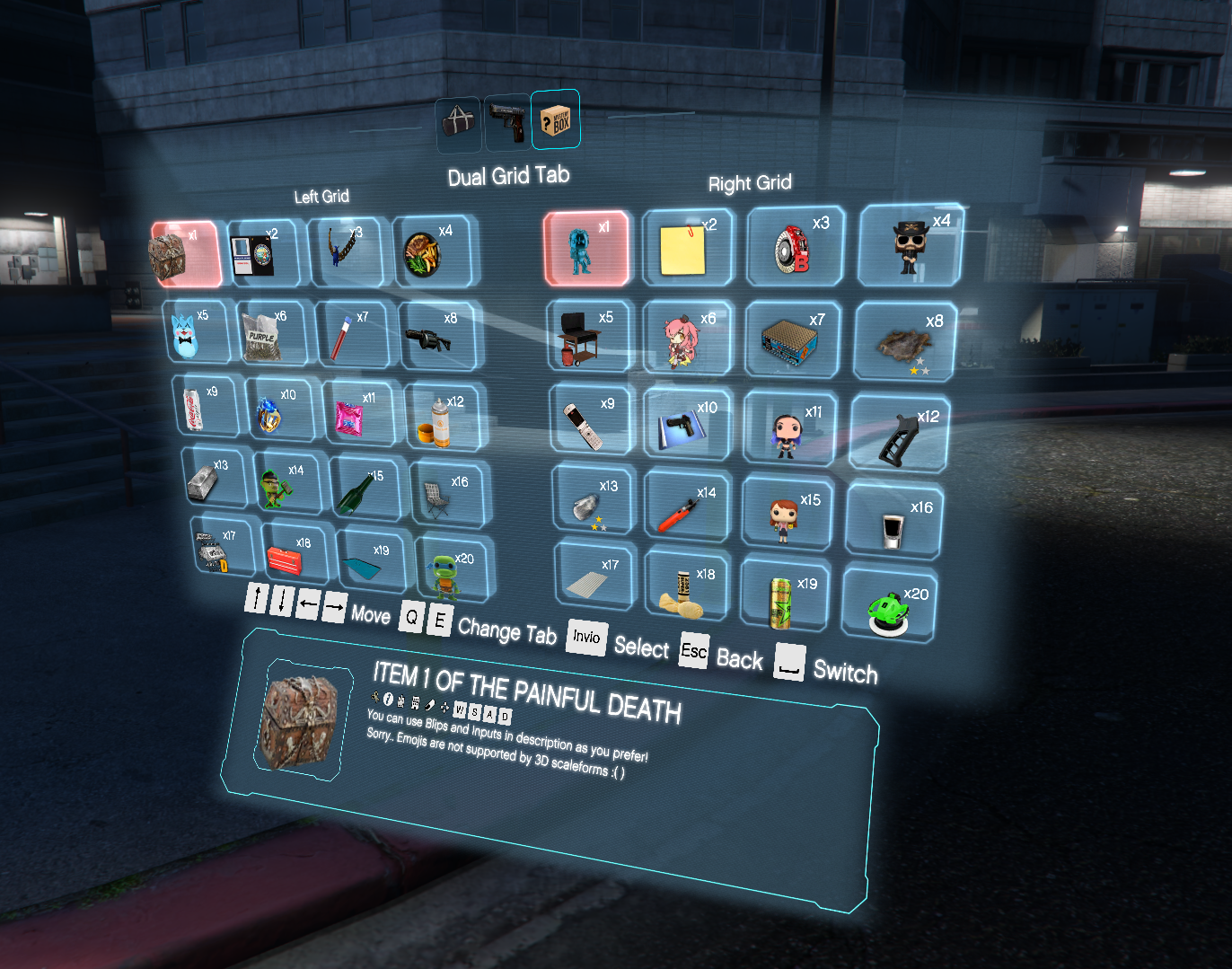

DualGrid is a tab that inherits from BaseTab and displays two grids side by side within the center panel. It supports navigation between left and right grids, a bottom description panel, contextual menus (ContextColumn) for each item, and a callback when the selected index changes. The tab also supports switching behavior between grids depending on input type.
Properties
Property
Type
Description
CenterPanel
DualGridColumn
The main center panel containing both left and right grids.
BottomPanel
DescriptionPanel
Panel used exclusively to display the description of the currently selected item. Cannot be replaced with other panels.
_identifier
string
Internal tab identifier.
textureDict
string
Texture dictionary used for the tab.
textureFileName
string
Texture file name used for the tab.
OnIndexChange
fun(item:GridItem, index:integer)
Callback triggered whenever the selection changes in either grid.
Methods
Method
Parameters
Returns
Description
New(name, txd, txn)
name:string, txd:string, txn:string
DualGrid
Creates a new DualGrid tab with a given name and textures.
SetGridsTitles(leftGridTitle, rightGridTitle)
leftGridTitle:string, rightGridTitle:string
-
Sets the titles of the left and right grids.
AddLeftItem(item)
item:GridItem
-
Adds an item to the left grid.
AddRightItem(item)
item:GridItem
-
Adds an item to the right grid and updates the bottom panel.
RemoveLeftItem(index)
index:number
-
Removes the item at the specified index from the left grid and updates the bottom panel.
RemoveRightItem(index)
index:number
-
Removes the item at the specified index from the right grid.
CurrentSelection(gridIndex?, index?)
gridIndex:number|nil, index:number|nil
GridItem
Gets or sets the currently selected item in the specified grid.
SwitchType(switch:number)
switch:number
-
Sets the tab switching type: 0 = Left-Right movement, 1 = Frontend X (SpaceBar) control to switch grids.
Populate()
-
-
Populates all panels and grids with their items.
ShowColumns()
-
-
Shows all columns/panels in the tab.
GoUp()
-
-
Navigates up in the current grid and updates the bottom panel.
GoDown()
-
-
Navigates down in the current grid and updates the bottom panel.
GoLeft()
-
-
Navigates left in the current grid.
GoRight()
-
-
Navigates right in the current grid.
Select()
-
-
Opens the context menu (ContextColumn) for the currently selected item.
HandleInput()
-
-
Handles user input for navigation, selection, context menus, and grid switching.
Notes
The BottomPanel is exclusively a description panel and cannot be replaced by other panels. Its only purpose is to show details for the currently selected grid item.
ContextColumn is automatically populated when Select() is called and appears above the selected item in the current grid.
Navigation methods (GoUp, GoDown, GoLeft, GoRight) automatically update the BottomPanel and trigger the OnIndexChange callback.
The SwitchType method allows controlling how the user switches between left and right grids.
DualGridSwitchType
DualGridSwitchType defines how a dual-grid interface can be switched.
Name
Value
Description
MOVEMENT
0
Switch using movement keys
FRONTEND_X
1
Switch using the frontend X key
Example:
localdualGridTab=DualGrid.New("Dual Grid Tab","testtxd","popbox")inventory:AddTab(dualGridTab)dualGridTab:SetGridsTitles("Left Grid","Right Grid")dualGridTab.IBPanel:AddItem({Label="Move",Control="~INPUTGROUP_FRONTEND_DPAD_ALL~"})dualGridTab.IBPanel:AddItem({Label="Change Tab",Control="~INPUTGROUP_FRONTEND_BUMPERS~"})dualGridTab.IBPanel:AddItem({Label="Select",Control="~INPUT_FRONTEND_ACCEPT~"})dualGridTab.IBPanel:AddItem({Label="Back",Control="~INPUT_FRONTEND_CANCEL~"})dualGridTab.IBPanel:AddItem({Label="Switch grid",Control="~INPUT_FRONTEND_X~"})-- if not specified, the left/right panels will not exist so won't be visible-- local lootDetails = dualGridTab:SetupLeftPanel(PanelType.DETAILS_PANEL, "Item Details")-- local lootStats = dualGridTab:SetupRightPanel(PanelType.STATS_PANEL, "Your Stats")dualGridTab:SwitchType(DualGridSwitchType.FRONTEND_X)-- SpaceBar or X (square for PS controllers) on gamepadlocalleftitem=GridItem.New("Pistol","A simple Pistol to start your criminal career",100,`weapon_pistol`)-- no texture since we gave a weapon hashlocalrightitem=GridItem.New("Pistol","A simple Pistol to start your criminal career",100,"","sometexture","pistol")-- no weapon hash because we specify a texture.dualGridTab:AddLeftItem(leftitem)dualGridTab:AddRightItem(rightitem)
