DetailsPanel

The DetailsPanel is a panel used to display a list of max 8 detailed entries (details) for a selected item. Each detail can have a label, sublabel, and optional texture (TXD) and texture name (TXN). This panel is commonly used in the right panel of tabs to show additional information dynamically when the selection changes.

You can have MAX 8 entries at once

---

Properties

Name	Type	Description
Title	string	Panel title.
Parent	BaseTab	Reference to the parent tab.
BGColor	SColor	Background color for the panel.

---

Methods

Name	Parameters	Returns	Description
AddDetail	label: string, sublabel: string, txd: string, txn: string	number	Adds a new detail and returns its index.
UpdateDetail	id: number, label: string, sublabel: string, txd: string, txn: string	DetailsPanel	Updates an existing detail by ID.
ShowPanel	—	void	Displays the panel and sets its background color.
Clear	—	void	Clears all details and resets the panel.
Populate()	—	void	Initializes the panel in the scaleform.
SetVisible	state?: boolean	BasePanel	Shows or hides the panel; returns the panel instance.

---

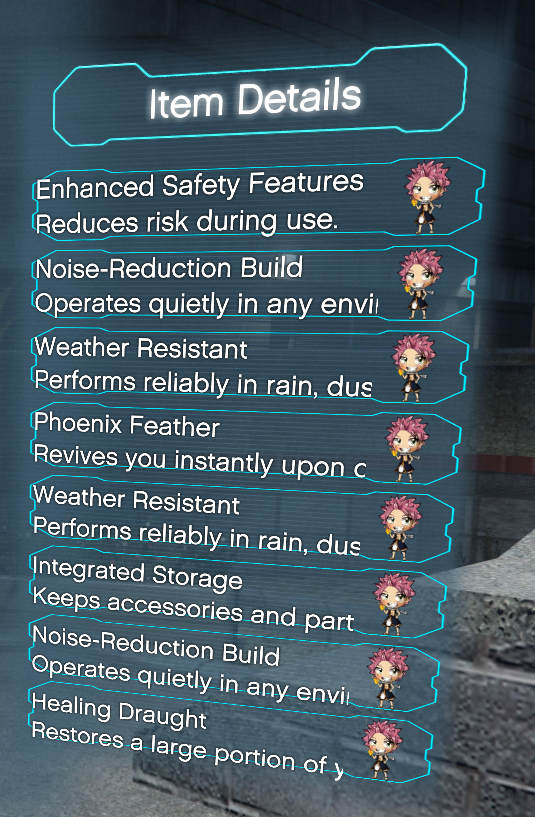

Example: Dynamically updating details on item selection

tab8by5.OnIndexChange = function(item, index)
    tab8by5.RightPanel:Clear()
    for i = 1, #itemDetails do
        tab8by5.RightPanel:AddDetail(itemDetails.label, itemDetails.desc, itemDetails.txd, itemDetails.txn)
    end
    tab8by5.RightPanel:ShowPanel() -- Required if Clear() was called, to refresh the scaleform buffer and redraw.
end

This example demonstrates how to clear existing details, add new details dynamically for the selected item, and refresh the panel to reflect the changes in one frame.

Details can be shown with or without textures by leaving the txd and txn parameters empty. In both cases, the label and sublabel will automatically scroll if they are too long to fit.
