World Markers API

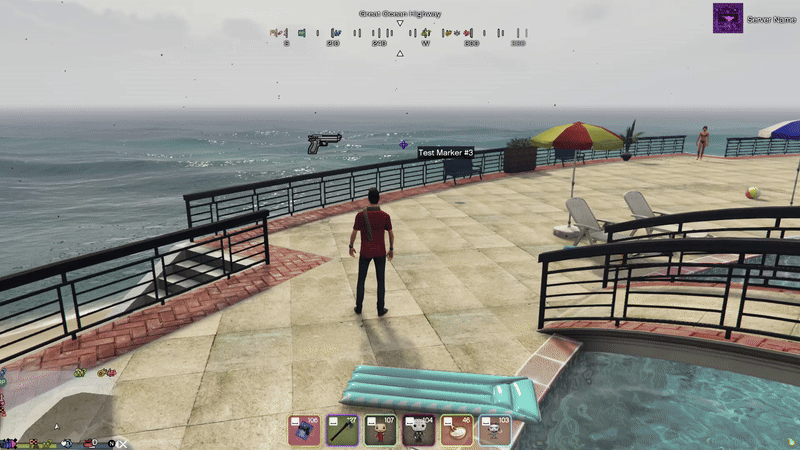

markers

The World Markers component allows you to project 2D UI elements onto 3D world coordinates. Think of it as a system for floating UI: you can create health bars above players, mission objective markers, or interaction prompts that stick to specific locations in the game world.

⚙️ Internal Architecture

Rendering 2D elements that follow 3D objects requires heavy mathematical calculations (World-to-Screen projection) every frame. To ensure high performance, this component uses a Smart Culling System.

1. Active Element Rebuilding

Instead of blindly calculating screen positions for every single marker (which could be hundreds), the script runs a Rebuild Loop (every 1000ms or when triggered).

  • It calculates the distance of every marker from the camera.
  • It filters out markers that are beyond their farScalingDistance.
  • It creates a lightweight list of only the Active Elements to be processed in the rendering loop.

2. Dynamic Scaling logic

The projection logic includes built-in scaling features handled natively:

  • Near/Far Scaling: You can define a distance range (e.g., 0m to 500m). The marker will automatically scale down as it gets further away, creating a sense of depth.
  • Clamping: You can choose if a marker should disappear when it goes off-screen (behind the camera) or if it should “stick” to the edge of the screen (like a damage indicator).

Accessing the API

local Markers = exports['eir_hud']:GetEirAPI().WorldMarkers
-- or
local Markers = exports['eir_hud']:GetWorldMarkersAPI()

Creating Markers

All Add functions return an integer ID. You must save this ID if you want to update or remove the marker later.

AddBlip(position, blipID, colour, scale)

Adds a standard game blip icon at the specified coordinate.

  • position: vector3
  • blipID: integer (Game sprite ID)
  • colour: integer (SColor)
  • scale: number (Default: 100)

AddLabel(position, label, font, colour, scale)

Adds floating text.

  • label: string
  • font: string (e.g., “$Font2”)

AddProgressBar(position, width, height, isVertical, showContour, colour, scale)

Adds a linear progress bar (useful for reloading/action timers).

  • width, height: integer (Pixel dimensions)
  • isVertical: boolean
  • showContour: boolean (Black outline)

AddCircleBar(position, size, startAngle, endAngle, showContour, colour, scale)

Adds a radial/circular progress bar (useful for health/stamina).

  • startAngle, endAngle: number (Degrees)

AddTexture(position, txd, txn, w, h, colour, scale)

Adds a custom image from a Texture Dictionary.

  • txd, txn: string (Dictionary and Name)
  • w, h: integer (Pixel dimensions)

AddWeapon(position, weaponHash, colour, scale)

Adds a weapon icon derived from the game’s weapon hash.

Managing Markers

Once a marker is created, you use its ID to manipulate it.

UpdatePosition(id, position, offset)

Moves a marker to a new 3D location.

  • position: vector3 (New world coords)
  • offset: vector3 (Optional offset from the position)
-- Example: Make a label follow a player
local playerPed = PlayerPedId()
local coords = GetEntityCoords(playerPed)
-- Update the marker to stay 1.0 unit above the player's head
Markers.UpdatePosition(myLabelId, coords, vector3(0, 0, 1.0))

RemoveElement(id)

Deletes the marker and frees up memory.

Visual Updates

These methods update the style or content of an existing marker.

UpdateColour(id, colour)

Updates the tint color.

UpdateScale(id, scale, nearDist, farDist, minScale, maxScale)

Configures the distance scaling logic.

  • scale: Base scale multiplier.
  • nearDist / farDist: Distance range for auto-scaling.
  • minScale / maxScale: Clamping limits (0.0 - 1.0).

UpdateVisibilityFlags(id, showIfOutOfSight, keepScalingOutOfSight)

  • showIfOutOfSight: If true, the marker stays on screen edges when the target is behind the camera.

Specific Updates

  • UpdateLabel(id, label, font, colour, scale)
  • UpdateProgressBar(id, percentage, colour)
  • UpdateCircleBar(id, percentage, colour)
  • UpdateTexture(id, txd, txn, w, h, colour, scale)

Data Retrieval

GetComponentInfo()

Returns the base component info.

GetValuesRuntime()

Returns the list of all currently tracked elements.
